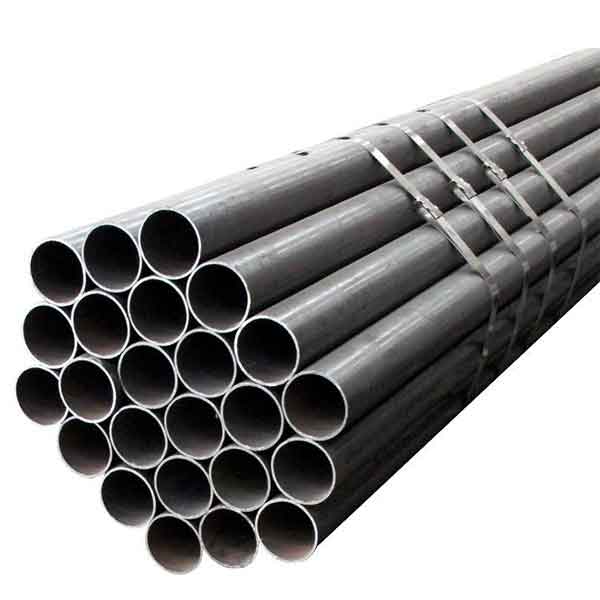

C.S SMLS Pipe
C.S SMLS Pipe
Outsize diameter: 8″ to 80″
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Carbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, Keep warm, C5M Coating, etc.
Steel pipes have a hollow section and are used in large quantities as pipelines for conveying fluids, such as pipelines for conveying oil, natural gas, gas, water and certain solid materials.
S.S P.L Flange
PIPE&FITTING, S.S FLANGES
Size: 3/8” to 48”
Pressure: PN6 to PN300, Class 150 to Class 1500
Wall thickness: SCH 10S, 40S, 80S
Standard: ANSI B16.5, ANSI B16.9, ASME B16.11, ASME B16.47
EN1092-1
JIS B2220
BS4504
Material: Stainless steel
Sealing method: FF, TG, MFM
Surface: Anti-rust oil, Coloring, etc.
C.S ERW Pipe
PIPE&FITTING, C.S PIPE
Outsize diameter: 1/2" to 80"
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Carbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, C5M Coating, etc.
S.S Elbow
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Angle: 45°, 90°
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
C.S Tee
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2” to 48”
Pressure: PN6 to PN300
Caliber: Equal path, Reducing
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
C.S Cross
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Caliber: Equal path, Reducing
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
M.I Cross
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter:1/8" to 6"
Pressure: PN16
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
C.S Elbow
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2” to 48”
Pressure: PN6 to PN300
Angle: 22.5°, 45°, 90°, 180°
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
M.I Bushing
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter:1/4"×1/8" to 4"×3"
Pressure: PN16
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
C.S Saddle
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2” to 48”
Pressure: PN6 to PN300
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
F/M Threaded Union Elbow
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
F/M Threaded Union
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
F/M Hose Pipe Union
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8" to 4"
Pressure: PN6 to PN300
Material: Stainless steel
