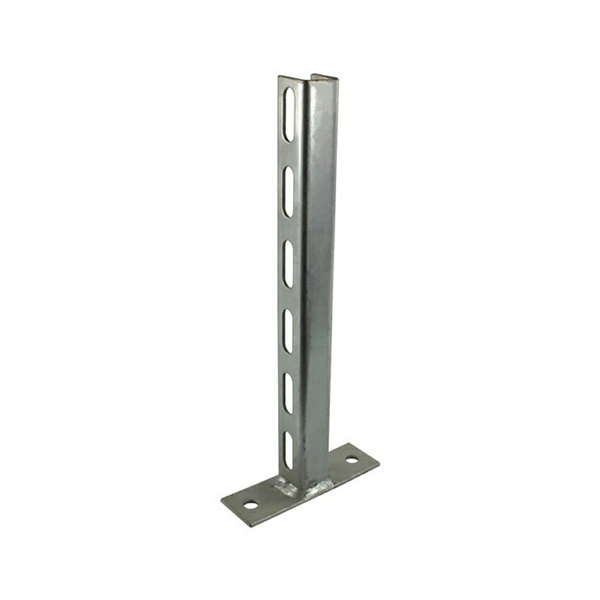

C type suspension arm
C type suspension arm
Size(cm): Single: 20 to 50

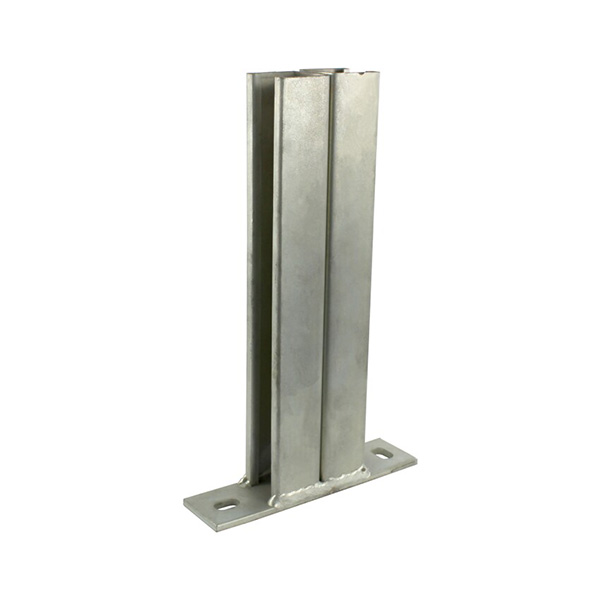

Double: 20 to100
Uniform Design Load(kN/M):
Single: 7.5 to 0.7
Double: 13.3 to 2.1
Material: Carbon Steel
Applicable to steel structure, concrete and other structures, consists of a variety of forms of support system, support to connect various forms of piping, solid and reliable wall support, can match with any other accessories, safe and efficient.
Strut Clamp Conduit
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 10"
Bolt: M6 and M8
Uniform Design Load: 1.8kN/M to 4.4kN/M
Material: Carbon steel
Top Beam Clamp
METAL FRAMING SYSTEM, TOP BEAM CLAMP
Size: 3/8" to 3/4"
Blot: 3/8" to 3/4"
Uniform Design Load: 0.8kN/M
Material: carbon steel
Stand Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 10"
Bolt: M6
Uniform Design Load: 1.5kN/M to 4.3kN/M
Material: Carbon steel
EPDM Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt: M6 × 20
Uniform Design Load: 0.8kN/M to 1.5kN/M
Material: Carbon steel + EPDM
C-shaped channel steel
METAL FRAMING SYSTEM, SUSPENSION
Size: Single(cm): 20 to 100
Double: 20 to 100
Uniform Design Load(kN/M):
Single: 2.7 to 0.3
Double: 7.5 to 0.8
Material: Carbon Steel
S-10/S-10D Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 1" to 64"
Working Pressure: PN6 to PN25
Temperature: -15 to 115 ℃
Pear Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt: M6 × 20
Uniform Design Load: 0.8kN/M to 1.5kN/M
Material: carbon steel
S-30 Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 3/4" to 3"
Working Pressure: PN10
Temperature: -15 to 115 ℃
Round Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt:1/2" to 3/4"
Uniform Design Load: 7.5kN/M
Material: Carbon Steel
2S-20/S-20D Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 2" to 10"
Working Pressure: PN6 to PN25
Temperature: -15 to 115 ℃
Trapezoidal Suspension Arm
METAL FRAMING SYSTEM, SUSPENSION
Size(cm): 20 and 60
Uniform Design Load(kN/M): 150 to 100
Material: Carbon steel
