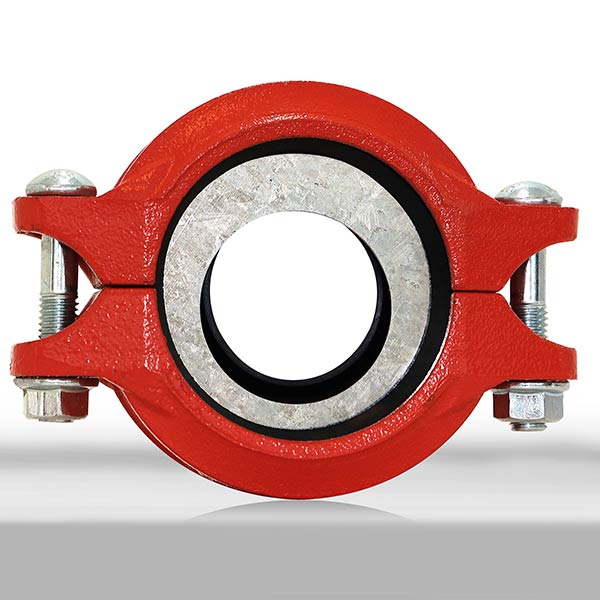

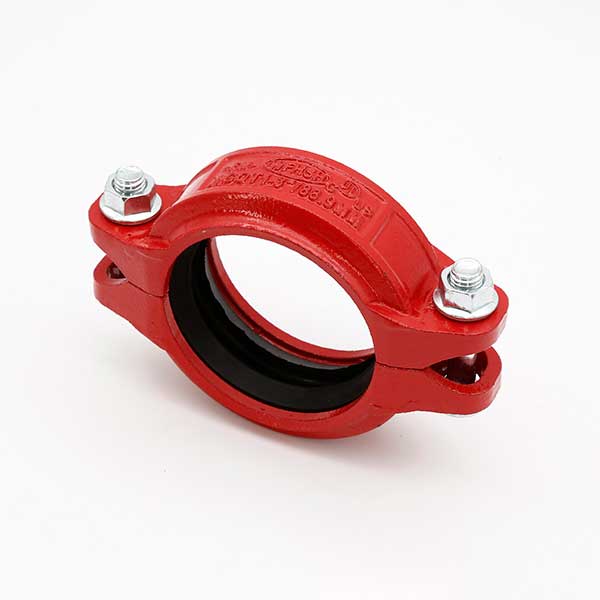

Coupling
Coupling
Size: 1″ to 12″
Forms of work: Rigid, Flexible, Angle pad, Flexible Reducing
Thread: M10×45 to M22×140
Material: ASTM A536 : 65-45-12
Working pessuer: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Rigid Couplings can not enable the connection system to be flexible, and the couplings are integrated with steel pipes after they are fastened. If the sling has a bigger span, the pipes will support the connection depending on their own rigidity.
Flexible Couplings can enable the connection system to be flexible，The pipe couplings should maintain the normal working condition under the maximum allowable deflection and dislocation .
Threaded Mechanical Tee
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 2"×1" to 8"×4"
Hole dia(mm): 51 to 114
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Flange Swing Check Valve
FIRE FIGHTING EQUIPMENT, FIRE VALVE
Size: 2" to 12"
Conforms: AWWA C508
Connection: Grooved End
Flange End
Grooved * Flanges End
Mechanical Joint
Mechanical Joint * Flange End
Nominal Pressure: 300 PSI
Maximum Working Pressure:
300 PSI (Maximum Pressure : 600PSI)
Conforms to UL 312 & FM Class 1210
Working Temperature: 80℃, 176℉
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
Approvals:UL FM
Grooved Cross
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 4" to 1", 4" × 1" to 6-1/2"×3"
Caliber: Equal path, Reducing
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Storz Coupling Sets
FIRE FIGHTING EQUIPMENT, ALUMINUM STORZ
Storz size: DN20 to DN100
Outside: DN20 F to DN 100 F BSP
Material: Aluminum
RF-200 High Deflection Type Sprinkler Hose
FIRE FIGHTING EQUIPMENT, FIRE SOFT HOSE
Soft hose length(mm):70 to 180
Radius min UL: 100
Radius min FM: 250
Pressure Max(Mpa): 1.6
UL FM Pressure Max(Mpa): 1.4
Sprinkler K value Max: DN15 K80, K115
Water intake size: 1"
Water outlet size (Pipe thread): 3/4" to 1"
Material:Stainless steel
Certification: UL FM
Grooved Mechanical Tee
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 2"×1-1/4" to 8"×4"
Hole dia(mm): 51 to 114
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Adaptor Flange
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12"
Treaded: 4-M16 to 12-M24
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
RF-400 Large Flow Type Sprinkler Hose
FIRE FIGHTING EQUIPMENT, FIRE SOFT HOSE
Soft hose length(mm):70 to 180
Radius min UL: 100
Radius min FM: 250
Pressure Max(Mpa): 1.6
UL FM Pressure Max(Mpa): 1.4
Sprinkler K value Max: DN15 K80, K115
Water intake size: 1"
Water outlet size (Pipe thread): 3/4" to 1"
Material:Stainless steel
Certification: UL FM
ERW Fire fighting pipe
FIRE FIGHTING EQUIPMENT, C.S FIRE PIPE
Size: 3/4" to 24"
Weld Schedules: STD, SCH10, 40, 80, 120, 160
Material: Carbon steel
Surface: Painted, Electroplated, Epoxy, H.D.G, etc.
RF-100 High Strength Sprinkler Hose
FIRE FIGHTING EQUIPMENT, FIRE SOFT HOSE
Soft hose length(mm):70 to 180
Radius min UL: 100
Radius min FM: 250
Pressure Max(Mpa): 1.6
UL FM Pressure Max(Mpa): 1.4
Sprinkler K value Max: DN15 K80, K115
DN20 K14, K202
Water intake size: 1"
Water outlet size (Pipe thread): 3/4" to 1"
Material:Stainless steel
Certification: UL FM
Grooved Tee
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12", 2"×1" to 8"×6"
Caliber: Equal path, Reducing
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Double Jet Fire Nozzle
FIRE FIGHTING EQUIPMENT, FIRE NOZZLE
Inlet: 2"
Caliber(mm): 12
Working pressure: PN16
Material: Aluminum + Nylon
Medium: Water, Foam, etc.
