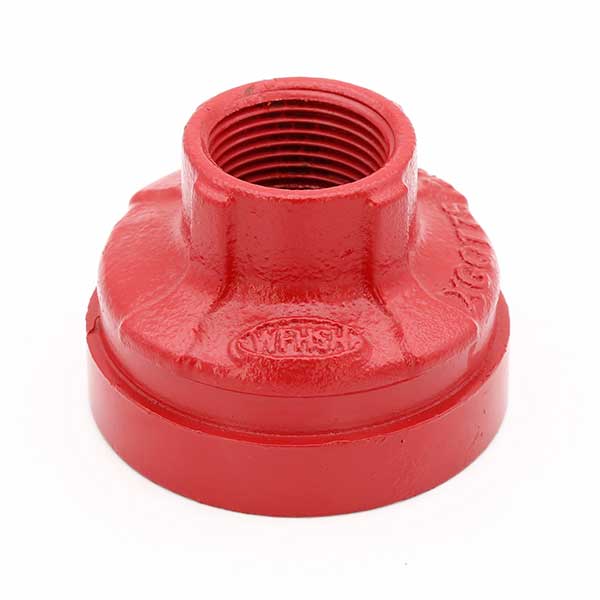

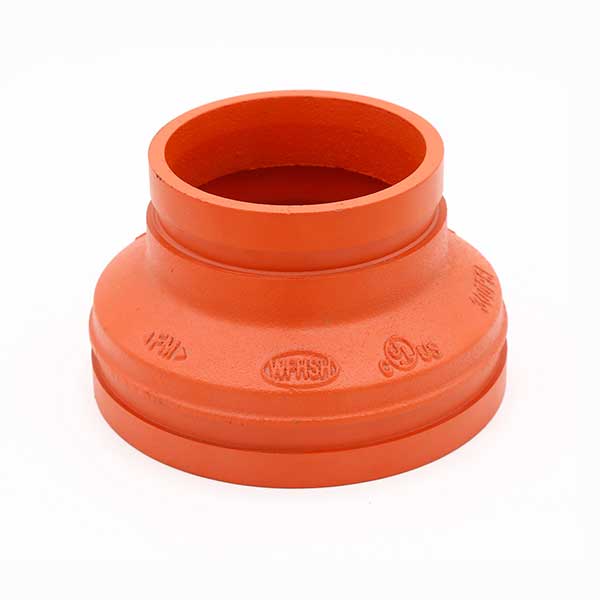

Grooved Reducer
Grooved Reducer
Size: 2″×1″ to 8″×4″, 3″×2″ to 8″×6″
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
A grooved reducer reduces the pipe size from a larger to a smaller bore (inner diameter).
This change intended to meet hydraulic flow requirements of the system or adapt to existing piping of a different size.
A reducer can also be used either as a nozzle or diffuser.
Usually liquid- or gas-tight, cover the otherwise open end of a pipe.
Storz Coupling Sets
FIRE FIGHTING EQUIPMENT, ALUMINUM STORZ
Storz size: DN20 to DN100
Outside: DN20 F to DN 100 F BSP
Material: Aluminum
Adaptor Flange
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12"
Treaded: 4-M16 to 12-M24
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Grooved Tee
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12", 2"×1" to 8"×6"
Caliber: Equal path, Reducing
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Grooved Cross
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 4" to 1", 4" × 1" to 6-1/2"×3"
Caliber: Equal path, Reducing
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Coupling
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12"
Forms of work: Rigid, Flexible, Angle pad, Flexible Reducing
Thread: M10×45 to M22×140
Material: ASTM A536 : 65-45-12
Working pessuer: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Reel Plate Fire Nozzle
FIRE FIGHTING EQUIPMENT, FIRE NOZZLE
Inlet: 3/4" to1"
Caliber(mm): 4
Working pressure : PN 16
Material: Aluminum + Nylon
Medium: Water
C/W Signal Gearbox Butterfly Valve
FIRE FIGHTING EQUIPMENT, FIRE VALVE
Size: 3/4" to 12"
Connection: Grooved End
Wafer End
Grooved * Flanges End
Maximum Working pressure:
300 PSI (Maximum Testing Pressure :600 PSI)
Conforms to UL 1091 & ULC / ORD-C1091 & FM 1112
Maximum Working Temperature: 80℃, 176℉
Conforms: ANSI, AWWA 606, Metric Standard clear Waterway design
Approvals: FM UL, CUL, NS, ANSI 61 & NSF, ANSI 372, CCCF
Certified lead-free: NSF.ANSI 61 & NSF, ANSI 372
EPDM Hose
FIRE FIGHTING EQUIPMENT, FIRE HOSE
Inner diameter: 1-1/4" to 6"
Working pressure (Mpa):
DN32 (0.8-3.0), DN150(0.8-1.3)
Bursting pressure (Mpa):
DN32 (2.4-9.0), DN150(2.4-3.9)
Jacket: Polyester filament or polyester yarn, single jacket, twill or plain weaving
Lining: EPDM
Standard reference: ULC FM, EN14540, NBR11861, DIN14811, BS6391-1
Length (m): 15, 20, 25, 30, 40
Specific length according to customer's request
Color: Any color
Double Rubber Fier Hose
FIRE FIGHTING EQUIPMENT, FIRE HOSE
Inner diameter: 1-1/4" to 6"
Working pressure (Mpa):
DN32 (0.8-3.0), DN150(0.8-1.3)
Bursting pressure (Mpa):
DN32 (2.4-9.0), DN150(2.4-3.9)
Jacket:Polyester filament or polyester yarn, single jacket, twill or plain weaving
Outside lining: PVC, PU, Rubber
inside lining: PVC, PU, Rubber
Standard reference: ULC FM, EN14540, NBR11861, DIN14811, BS6391-1
Length (m):15, 20, 25, 30, 40
Specific length according to customer's request
Color: Any color
RF-400 Large Flow Type Sprinkler Hose
FIRE FIGHTING EQUIPMENT, FIRE SOFT HOSE
Soft hose length(mm):70 to 180
Radius min UL: 100
Radius min FM: 250
Pressure Max(Mpa): 1.6
UL FM Pressure Max(Mpa): 1.4
Sprinkler K value Max: DN15 K80, K115
Water intake size: 1"
Water outlet size (Pipe thread): 3/4" to 1"
Material:Stainless steel
Certification: UL FM
ERW Fire fighting pipe
FIRE FIGHTING EQUIPMENT, C.S FIRE PIPE
Size: 3/4" to 24"
Weld Schedules: STD, SCH10, 40, 80, 120, 160
Material: Carbon steel
Surface: Painted, Electroplated, Epoxy, H.D.G, etc.
RF-200 High Deflection Type Sprinkler Hose
FIRE FIGHTING EQUIPMENT, FIRE SOFT HOSE
Soft hose length(mm):70 to 180
Radius min UL: 100
Radius min FM: 250
Pressure Max(Mpa): 1.6
UL FM Pressure Max(Mpa): 1.4
Sprinkler K value Max: DN15 K80, K115
Water intake size: 1"
Water outlet size (Pipe thread): 3/4" to 1"
Material:Stainless steel
Certification: UL FM
