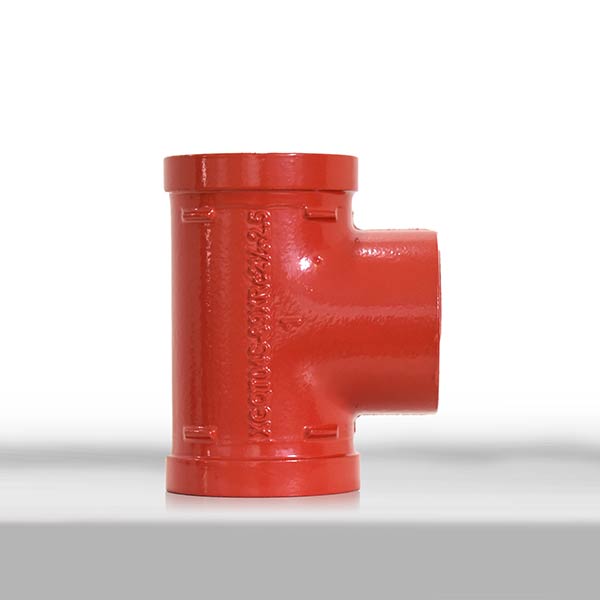

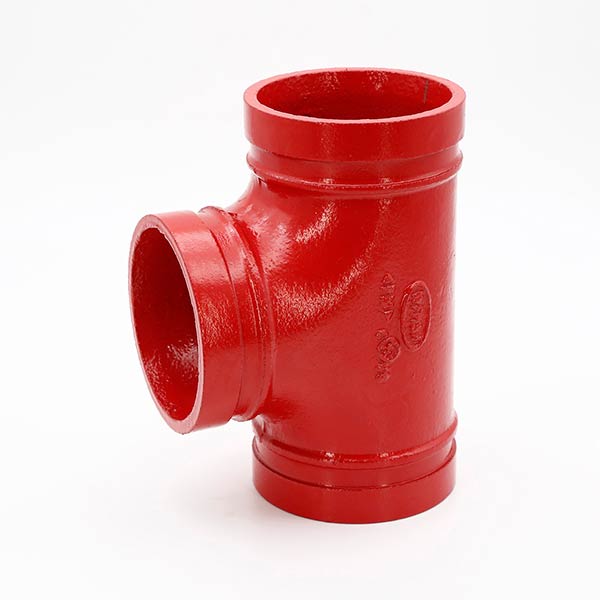

Grooved Tee
Grooved Tee
Size: 1″ to 12″, 2″×1″ to 8″×6″
Caliber: Equal path, Reducing
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
It is used to combine or divide fluid flow.
Grooved Tees can connect to different diameters of pipes or change the direction of a pipe run.
Coupling
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12"
Forms of work: Rigid, Flexible, Angle pad, Flexible Reducing
Thread: M10×45 to M22×140
Material: ASTM A536 : 65-45-12
Working pessuer: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
End Cap
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 8"
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Double Jacket Fire Hose
FIRE FIGHTING EQUIPMENT, FIRE HOSE
Inner diameter: 1-1/4" to 6"
Working pressure (Mpa):
DN32 (4.8 to 15.0), DN150(4.8 to 7.5)
Bursting pressure (Mpa):
DN32 (2.4-9.0), DN150(2.4-3.9)
Jacket: Polyester filament or polyester yarn,single jacket,twill or plain weaving
Lining: PVC, PU, EPDM
Standard reference: ULC FM
Length (m): 15, 20, 25, 30, 40
Specific length according to customer's request
Color: Any color
Grooved Swing Check Valve
FIRE FIGHTING EQUIPMENT, FIRE VALVE
Size: 2" to 12"
Grooved standard: ANSI / AWWA C606, Metric
Nominal Pressure: 350PSI
Maximum Working Pressure:
300 PSI (Maximum Pressure : 600PSI)
Conforms to UL 312 & FM Class 1210
Working Temperature: 80℃, 176℉
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
Approvals: UL FM
Inside Screw Non-Rising Stem Type Gate Valve
FIRE FIGHTING EQUIPMENT, FIRE VALVE
Size: 2-1/2" to 12"
Sealing properties: Soft & Hard sealing
Connection: Grooved End
Flange End
Grooved * Flanges End
Mechanical Joint
Mechanical Joint * Flange End
Nominal pressure: 14 Bar, 21 Bar, 200 PSI, 300 PSI
Approvals: FM UL, CUL, NSF, ANSI 61 & NSF, ANSI 372
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
Reel Plate Fire Nozzle
FIRE FIGHTING EQUIPMENT, FIRE NOZZLE
Inlet: 3/4" to1"
Caliber(mm): 4
Working pressure : PN 16
Material: Aluminum + Nylon
Medium: Water
Double Rubber Fier Hose
FIRE FIGHTING EQUIPMENT, FIRE HOSE
Inner diameter: 1-1/4" to 6"
Working pressure (Mpa):
DN32 (0.8-3.0), DN150(0.8-1.3)
Bursting pressure (Mpa):
DN32 (2.4-9.0), DN150(2.4-3.9)
Jacket:Polyester filament or polyester yarn, single jacket, twill or plain weaving
Outside lining: PVC, PU, Rubber
inside lining: PVC, PU, Rubber
Standard reference: ULC FM, EN14540, NBR11861, DIN14811, BS6391-1
Length (m):15, 20, 25, 30, 40
Specific length according to customer's request
Color: Any color
ERW Fire fighting pipe
FIRE FIGHTING EQUIPMENT, C.S FIRE PIPE
Size: 3/4" to 24"
Weld Schedules: STD, SCH10, 40, 80, 120, 160
Material: Carbon steel
Surface: Painted, Electroplated, Epoxy, H.D.G, etc.
Grooved Cross
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 4" to 1", 4" × 1" to 6-1/2"×3"
Caliber: Equal path, Reducing
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
SMLS Fire fighting pipe
FIRE FIGHTING EQUIPMENT, C.S FIRE PIPE
Size: 3/4" to 24"
Weld Schedules: STD, SCH10, 40, 80, 120, 160
Material: Carbon steel
Surface: Painted, Electroplated, Epoxy, H.D.G, etc.
German Fire Nozzle
FIRE FIGHTING EQUIPMENT, FIRE NOZZLE
Inlet: 2"
Caliber(mm): 9
Working pressure: PN16
Material: Aluminum + Nylon
Medium: Water, Foam, etc.
Storz Reducer Coupling
FIRE FIGHTING EQUIPMENT, ALUMINUM STORZ
Storz size: DN20 to DN100
Outside: DN20 F to DN 100 F BSP
Material: Aluminum
