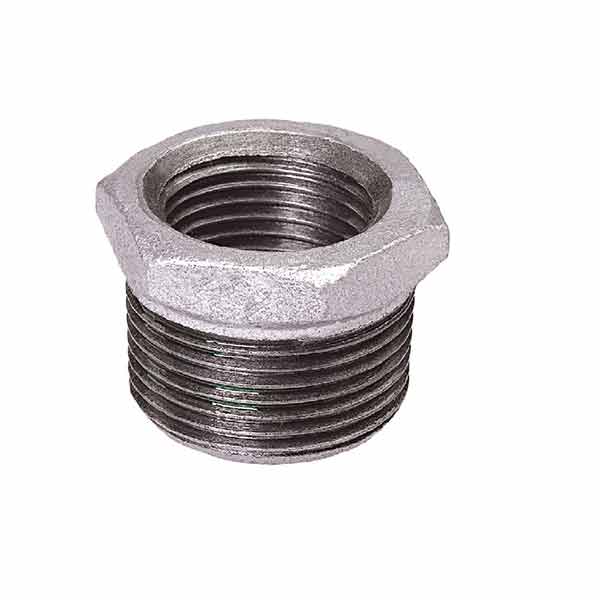

M.I Bushing
M.I Bushing
Outsize diameter:1/4″×1/8″ to 4″×3″
Pressure: PN16
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
Hexagonal or octagonal internal and external threaded pipe fittings connecting two sections of pipes with different diameters are pipe fittings made of British standard thread and malleable steel that are connected in parallel.
S.S Elbow
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Angle: 45°, 90°
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
F/M Threaded Union Elbow
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
M.I Cross
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter:1/8" to 6"
Pressure: PN16
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
C.S Cross
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Caliber: Equal path, Reducing
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
M.I Cap
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter: 1/8" to 6"
Pressure: PN16
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
C.S Tee
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2” to 48”
Pressure: PN6 to PN300
Caliber: Equal path, Reducing
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
S.S Cap
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Weld Schedules: 1/2" to 48"
Pressure: PN6 to PN300
Weld Schedules: SCH 10S, 40S, 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc
C.S SMLS Pipe
PIPE&FITTING, C.S PIPE
Outsize diameter: 8" to 80"
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Carbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, Keep warm, C5M Coating, etc.
S.S P.L Flange
PIPE&FITTING, S.S FLANGES
Size: 3/8” to 48”
Pressure: PN6 to PN300, Class 150 to Class 1500
Wall thickness: SCH 10S, 40S, 80S
Standard: ANSI B16.5, ANSI B16.9, ASME B16.11, ASME B16.47
EN1092-1
JIS B2220
BS4504
Material: Stainless steel
Sealing method: FF, TG, MFM
Surface: Anti-rust oil, Coloring, etc.
S.S SMLS Pipe
PIPE&FITTING, S.S PIPE
Outsize diameter: 1/4" to 60"
Weld schedules: STD, SCH10S, 40S, 80S
Material: Stainless steel
Surface treatment: Pickling, Sandblasting
S.S ERW Pipe
PIPE&FITTING, S.S PIPE
Outsize diameter: 1/4" to 60"
Weld schedules: STD, SCH10S, 40S, 80S
Material: Stainless steel
Surface treatment: Pickling, Sandblasting
C.S Elbow
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2” to 48”
Pressure: PN6 to PN300
Angle: 22.5°, 45°, 90°, 180°
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
