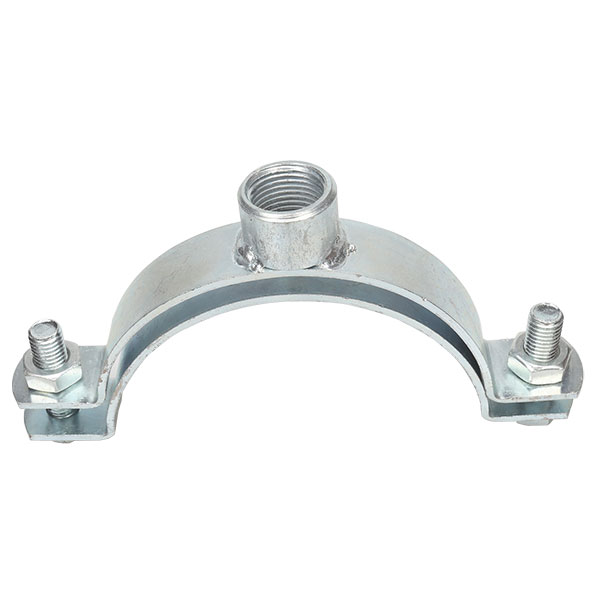

Round Clamp
Round Clamp
Size: 1/2″ to 8″
Nut: 1/2″ to 3/4″
Bolt:1/2″ to 3/4″
Uniform Design Load: 7.5kN/M
Material: Carbon Steel
It is fixed on the wall or ceiling to stabilize the vibration of the pipe and prevent the pipe from falling off.
Used indoors and outdoors, office buildings, residences, factories, etc.
Additional Information
| Standard of material | DIN EN 17100 |
|---|
2S-20/S-20D Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 2" to 10"
Working Pressure: PN6 to PN25
Temperature: -15 to 115 ℃
C type suspension arm
METAL FRAMING SYSTEM, SUSPENSION
Size(cm): Single: 20 to 50
Double: 20 to100
Uniform Design Load(kN/M):
Single: 7.5 to 0.7
Double: 13.3 to 2.1
Material: Carbon Steel
Stand Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 10"
Bolt: M6
Uniform Design Load: 1.5kN/M to 4.3kN/M
Material: Carbon steel
S-30 Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 3/4" to 3"
Working Pressure: PN10
Temperature: -15 to 115 ℃
EPDM Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt: M6 × 20
Uniform Design Load: 0.8kN/M to 1.5kN/M
Material: Carbon steel + EPDM
Trapezoidal Suspension Arm
METAL FRAMING SYSTEM, SUSPENSION
Size(cm): 20 and 60
Uniform Design Load(kN/M): 150 to 100
Material: Carbon steel
S-10/S-10D Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 1" to 64"
Working Pressure: PN6 to PN25
Temperature: -15 to 115 ℃
Strut Clamp Conduit
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 10"
Bolt: M6 and M8
Uniform Design Load: 1.8kN/M to 4.4kN/M
Material: Carbon steel
Pear Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt: M6 × 20
Uniform Design Load: 0.8kN/M to 1.5kN/M
Material: carbon steel
C-shaped channel steel
METAL FRAMING SYSTEM, SUSPENSION
Size: Single(cm): 20 to 100
Double: 20 to 100
Uniform Design Load(kN/M):
Single: 2.7 to 0.3
Double: 7.5 to 0.8
Material: Carbon Steel
Top Beam Clamp
METAL FRAMING SYSTEM, TOP BEAM CLAMP
Size: 3/8" to 3/4"
Blot: 3/8" to 3/4"
Uniform Design Load: 0.8kN/M
Material: carbon steel
