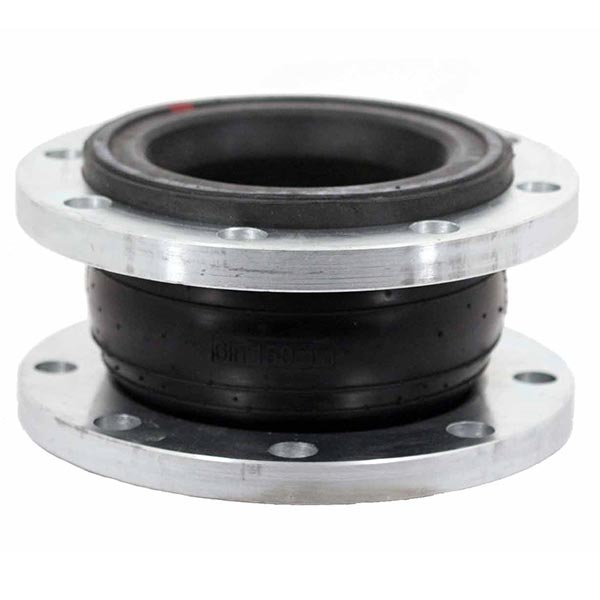

S-10/S-10D Type
S-10/S-10D Type
Size: 1″ to 64″
Working Pressure: PN6 to PN25
Temperature: -15 to 115 ℃
Pipe connection fittings, rubber can reduce noise generation and can be connected in dislocation.
Stand Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 10"
Bolt: M6
Uniform Design Load: 1.5kN/M to 4.3kN/M
Material: Carbon steel
C-shaped channel steel
METAL FRAMING SYSTEM, SUSPENSION
Size: Single(cm): 20 to 100
Double: 20 to 100
Uniform Design Load(kN/M):
Single: 2.7 to 0.3
Double: 7.5 to 0.8
Material: Carbon Steel
S-30 Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 3/4" to 3"
Working Pressure: PN10
Temperature: -15 to 115 ℃
Pear Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt: M6 × 20
Uniform Design Load: 0.8kN/M to 1.5kN/M
Material: carbon steel
Top Beam Clamp
METAL FRAMING SYSTEM, TOP BEAM CLAMP
Size: 3/8" to 3/4"
Blot: 3/8" to 3/4"
Uniform Design Load: 0.8kN/M
Material: carbon steel
Trapezoidal Suspension Arm
METAL FRAMING SYSTEM, SUSPENSION
Size(cm): 20 and 60
Uniform Design Load(kN/M): 150 to 100
Material: Carbon steel
2S-20/S-20D Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 2" to 10"
Working Pressure: PN6 to PN25
Temperature: -15 to 115 ℃
EPDM Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt: M6 × 20
Uniform Design Load: 0.8kN/M to 1.5kN/M
Material: Carbon steel + EPDM
Round Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt:1/2" to 3/4"
Uniform Design Load: 7.5kN/M
Material: Carbon Steel
C type suspension arm
METAL FRAMING SYSTEM, SUSPENSION
Size(cm): Single: 20 to 50
Double: 20 to100
Uniform Design Load(kN/M):
Single: 7.5 to 0.7
Double: 13.3 to 2.1
Material: Carbon Steel
Strut Clamp Conduit
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 10"
Bolt: M6 and M8
Uniform Design Load: 1.8kN/M to 4.4kN/M
Material: Carbon steel
