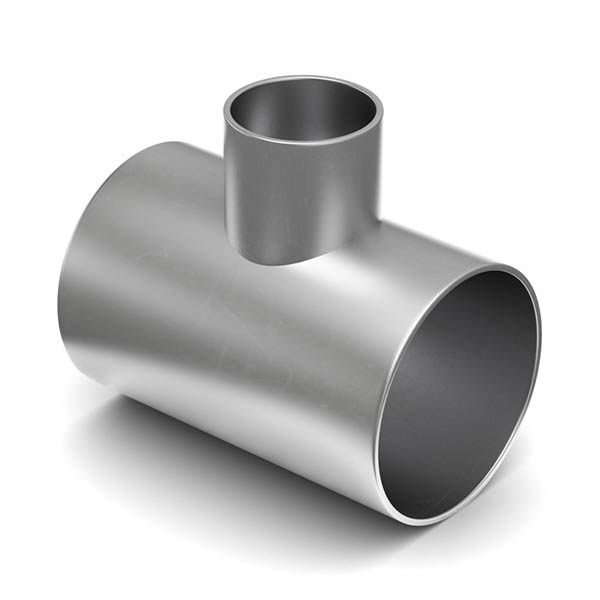

S.S Tee
S.S Tee
Outsize diameter: 1/2″ to 48″
Pressure: PN6 to PN300
Center distance: Concentric, Eccentric
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
It is used to combine or divide fluid flow. Tees can connect to different diameters of pipes or change the direction of a pipe run.
Additional Information
| Pressure | PN6 to PN300 |
|---|
C.S Cross
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Caliber: Equal path, Reducing
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
S.S P.L Flange
PIPE&FITTING, S.S FLANGES
Size: 3/8” to 48”
Pressure: PN6 to PN300, Class 150 to Class 1500
Wall thickness: SCH 10S, 40S, 80S
Standard: ANSI B16.5, ANSI B16.9, ASME B16.11, ASME B16.47
EN1092-1
JIS B2220
BS4504
Material: Stainless steel
Sealing method: FF, TG, MFM
Surface: Anti-rust oil, Coloring, etc.
Female Threaded Cross
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
C.S SMLS Pipe
PIPE&FITTING, C.S PIPE
Outsize diameter: 8" to 80"
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Carbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, Keep warm, C5M Coating, etc.
M.I Bushing
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter:1/4"×1/8" to 4"×3"
Pressure: PN16
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
C.S Reducer
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2” to 48”
Pressure: PN6 to PN300
Center distance: Concentric, Eccentric
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
C.S ERW Pipe
PIPE&FITTING, C.S PIPE
Outsize diameter: 1/2" to 80"
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Carbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, C5M Coating, etc.
S.S Reducer
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Center distance: Concentric, Eccentric
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
S.S Cross
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Center distance: Concentric, Eccentric
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
S.S ERW Pipe
PIPE&FITTING, S.S PIPE
Outsize diameter: 1/4" to 60"
Weld schedules: STD, SCH10S, 40S, 80S
Material: Stainless steel
Surface treatment: Pickling, Sandblasting
Threaded Bushing
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
S.S Saddle
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
