Storz Coupling Sets
Storz Coupling Sets
Storz size: DN20 to DN100
Outside: DN20 F to DN 100 F BSP
Material: Aluminum
STORZ installed at the bottom of the fire nozzle and connected to the fire hose.
Double Jet Fire Nozzle
FIRE FIGHTING EQUIPMENT, FIRE NOZZLE
Inlet: 2"
Caliber(mm): 12
Working pressure: PN16
Material: Aluminum + Nylon
Medium: Water, Foam, etc.

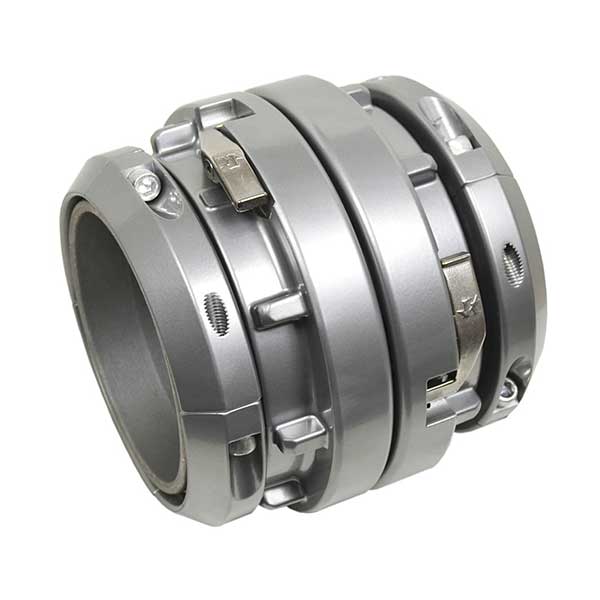

Storz Reducer Coupling
FIRE FIGHTING EQUIPMENT, ALUMINUM STORZ
Storz size: DN20 to DN100
Outside: DN20 F to DN 100 F BSP
Material: Aluminum
Flange Swing Check Valve
FIRE FIGHTING EQUIPMENT, FIRE VALVE
Size: 2" to 12"
Conforms: AWWA C508
Connection: Grooved End
Flange End
Grooved * Flanges End
Mechanical Joint
Mechanical Joint * Flange End
Nominal Pressure: 300 PSI
Maximum Working Pressure:
300 PSI (Maximum Pressure : 600PSI)
Conforms to UL 312 & FM Class 1210
Working Temperature: 80℃, 176℉
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
Approvals:UL FM
RF-100 High Strength Sprinkler Hose
FIRE FIGHTING EQUIPMENT, FIRE SOFT HOSE
Soft hose length(mm):70 to 180
Radius min UL: 100
Radius min FM: 250
Pressure Max(Mpa): 1.6
UL FM Pressure Max(Mpa): 1.4
Sprinkler K value Max: DN15 K80, K115
DN20 K14, K202
Water intake size: 1"
Water outlet size (Pipe thread): 3/4" to 1"
Material:Stainless steel
Certification: UL FM
Grooved Elbow
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12"
Angle: 45°, 90°
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Grooved Reducer
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 2"×1" to 8"×4", 3"×2" to 8"×6"
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
EPDM Hose
FIRE FIGHTING EQUIPMENT, FIRE HOSE
Inner diameter: 1-1/4" to 6"
Working pressure (Mpa):
DN32 (0.8-3.0), DN150(0.8-1.3)
Bursting pressure (Mpa):
DN32 (2.4-9.0), DN150(2.4-3.9)
Jacket: Polyester filament or polyester yarn, single jacket, twill or plain weaving
Lining: EPDM
Standard reference: ULC FM, EN14540, NBR11861, DIN14811, BS6391-1
Length (m): 15, 20, 25, 30, 40
Specific length according to customer's request
Color: Any color
RF-400 Large Flow Type Sprinkler Hose
FIRE FIGHTING EQUIPMENT, FIRE SOFT HOSE
Soft hose length(mm):70 to 180
Radius min UL: 100
Radius min FM: 250
Pressure Max(Mpa): 1.6
UL FM Pressure Max(Mpa): 1.4
Sprinkler K value Max: DN15 K80, K115
Water intake size: 1"
Water outlet size (Pipe thread): 3/4" to 1"
Material:Stainless steel
Certification: UL FM
ERW Fire fighting pipe
FIRE FIGHTING EQUIPMENT, C.S FIRE PIPE
Size: 3/4" to 24"
Weld Schedules: STD, SCH10, 40, 80, 120, 160
Material: Carbon steel
Surface: Painted, Electroplated, Epoxy, H.D.G, etc.
Adaptor Flange
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12"
Treaded: 4-M16 to 12-M24
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
End Cap
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 8"
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Grooved Swing Check Valve
FIRE FIGHTING EQUIPMENT, FIRE VALVE
Size: 2" to 12"
Grooved standard: ANSI / AWWA C606, Metric
Nominal Pressure: 350PSI
Maximum Working Pressure:
300 PSI (Maximum Pressure : 600PSI)
Conforms to UL 312 & FM Class 1210
Working Temperature: 80℃, 176℉
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
Approvals: UL FM
