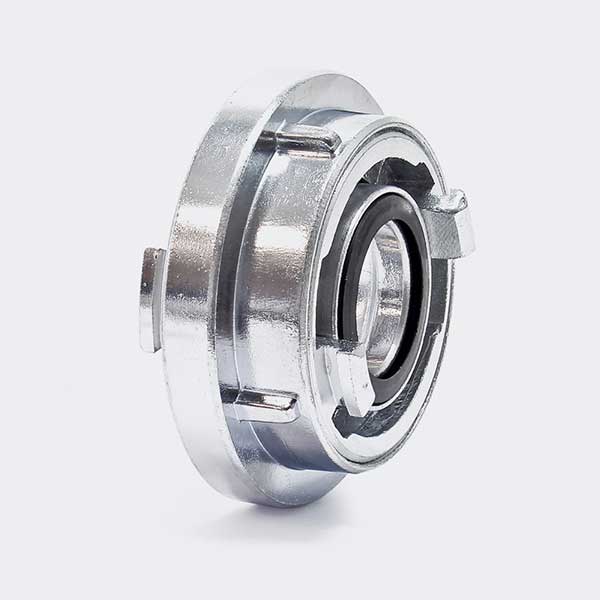

Storz Reducer Coupling
Storz Reducer Coupling
Storz size: DN20 to DN100
Outside: DN20 F to DN 100 F BSP
Material: Aluminum
Storz installed at the bottom of the fire nozzle and connected to the fire hose.
Double Jacket Fire Hose
FIRE FIGHTING EQUIPMENT, FIRE HOSE
Inner diameter: 1-1/4" to 6"
Working pressure (Mpa):
DN32 (4.8 to 15.0), DN150(4.8 to 7.5)
Bursting pressure (Mpa):
DN32 (2.4-9.0), DN150(2.4-3.9)
Jacket: Polyester filament or polyester yarn,single jacket,twill or plain weaving
Lining: PVC, PU, EPDM
Standard reference: ULC FM
Length (m): 15, 20, 25, 30, 40
Specific length according to customer's request
Color: Any color
Double Rubber Fier Hose
FIRE FIGHTING EQUIPMENT, FIRE HOSE
Inner diameter: 1-1/4" to 6"
Working pressure (Mpa):
DN32 (0.8-3.0), DN150(0.8-1.3)
Bursting pressure (Mpa):
DN32 (2.4-9.0), DN150(2.4-3.9)
Jacket:Polyester filament or polyester yarn, single jacket, twill or plain weaving
Outside lining: PVC, PU, Rubber
inside lining: PVC, PU, Rubber
Standard reference: ULC FM, EN14540, NBR11861, DIN14811, BS6391-1
Length (m):15, 20, 25, 30, 40
Specific length according to customer's request
Color: Any color
Double Jet Fire Nozzle
FIRE FIGHTING EQUIPMENT, FIRE NOZZLE
Inlet: 2"
Caliber(mm): 12
Working pressure: PN16
Material: Aluminum + Nylon
Medium: Water, Foam, etc.
German Fire Nozzle
FIRE FIGHTING EQUIPMENT, FIRE NOZZLE
Inlet: 2"
Caliber(mm): 9
Working pressure: PN16
Material: Aluminum + Nylon
Medium: Water, Foam, etc.
C/W Signal Gearbox Butterfly Valve
FIRE FIGHTING EQUIPMENT, FIRE VALVE
Size: 3/4" to 12"
Connection: Grooved End
Wafer End
Grooved * Flanges End
Maximum Working pressure:
300 PSI (Maximum Testing Pressure :600 PSI)
Conforms to UL 1091 & ULC / ORD-C1091 & FM 1112
Maximum Working Temperature: 80℃, 176℉
Conforms: ANSI, AWWA 606, Metric Standard clear Waterway design
Approvals: FM UL, CUL, NS, ANSI 61 & NSF, ANSI 372, CCCF
Certified lead-free: NSF.ANSI 61 & NSF, ANSI 372
Grooved Tee
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12", 2"×1" to 8"×6"
Caliber: Equal path, Reducing
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
End Cap
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 8"
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
RF-200 High Deflection Type Sprinkler Hose
FIRE FIGHTING EQUIPMENT, FIRE SOFT HOSE
Soft hose length(mm):70 to 180
Radius min UL: 100
Radius min FM: 250
Pressure Max(Mpa): 1.6
UL FM Pressure Max(Mpa): 1.4
Sprinkler K value Max: DN15 K80, K115
Water intake size: 1"
Water outlet size (Pipe thread): 3/4" to 1"
Material:Stainless steel
Certification: UL FM
Coupling
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12"
Forms of work: Rigid, Flexible, Angle pad, Flexible Reducing
Thread: M10×45 to M22×140
Material: ASTM A536 : 65-45-12
Working pessuer: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Grooved Mechanical Tee
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 2"×1-1/4" to 8"×4"
Hole dia(mm): 51 to 114
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Grooved Cross
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 4" to 1", 4" × 1" to 6-1/2"×3"
Caliber: Equal path, Reducing
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
Adaptor Flange
FIRE FIGHTING EQUIPMENT, FIRE PIPE FITTING
Size: 1" to 12"
Treaded: 4-M16 to 12-M24
Material: ASTM A536 : 65-45-12
Working pressure: 300 PSI, 2.07 Mpa
Available Color: Red, Orange, Blue, Gray, White
Certificate: UL FM
