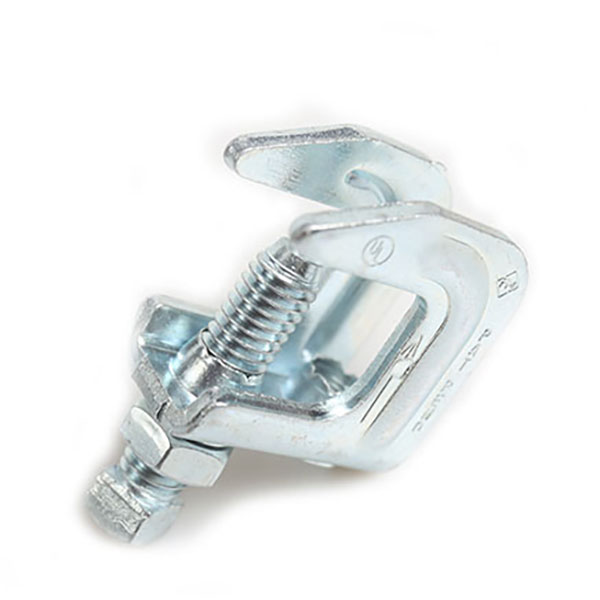

Top Beam Clamp
Top Beam Clamp
Size: 3/8″ to 3/4″
Blot: 3/8″ to 3/4″
Uniform Design Load: 0.8kN/M
Material: carbon steel
Top Beam Clamps Are Used For Attaching Hanger Rods. Top Beam Clamps are designed to attach hanger rods to the top flange of beams or bar joists.
Stand Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 10"
Bolt: M6
Uniform Design Load: 1.5kN/M to 4.3kN/M
Material: Carbon steel
C-shaped channel steel
METAL FRAMING SYSTEM, SUSPENSION
Size: Single(cm): 20 to 100
Double: 20 to 100
Uniform Design Load(kN/M):
Single: 2.7 to 0.3
Double: 7.5 to 0.8
Material: Carbon Steel
C type suspension arm
METAL FRAMING SYSTEM, SUSPENSION
Size(cm): Single: 20 to 50
Double: 20 to100
Uniform Design Load(kN/M):
Single: 7.5 to 0.7
Double: 13.3 to 2.1
Material: Carbon Steel
Round Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt:1/2" to 3/4"
Uniform Design Load: 7.5kN/M
Material: Carbon Steel
S-10/S-10D Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 1" to 64"
Working Pressure: PN6 to PN25
Temperature: -15 to 115 ℃
Pear Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt: M6 × 20
Uniform Design Load: 0.8kN/M to 1.5kN/M
Material: carbon steel
Strut Clamp Conduit
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 10"
Bolt: M6 and M8
Uniform Design Load: 1.8kN/M to 4.4kN/M
Material: Carbon steel
EPDM Clamp
METAL FRAMING SYSTEM, CLAMP
Size: 1/2" to 8"
Nut: 1/2" to 3/4"
Bolt: M6 × 20
Uniform Design Load: 0.8kN/M to 1.5kN/M
Material: Carbon steel + EPDM
Trapezoidal Suspension Arm
METAL FRAMING SYSTEM, SUSPENSION
Size(cm): 20 and 60
Uniform Design Load(kN/M): 150 to 100
Material: Carbon steel
S-30 Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 3/4" to 3"
Working Pressure: PN10
Temperature: -15 to 115 ℃
2S-20/S-20D Type
METAL FRAMING SYSTEM, RUBBER SLEEVE FITTING
Size: 2" to 10"
Working Pressure: PN6 to PN25
Temperature: -15 to 115 ℃
