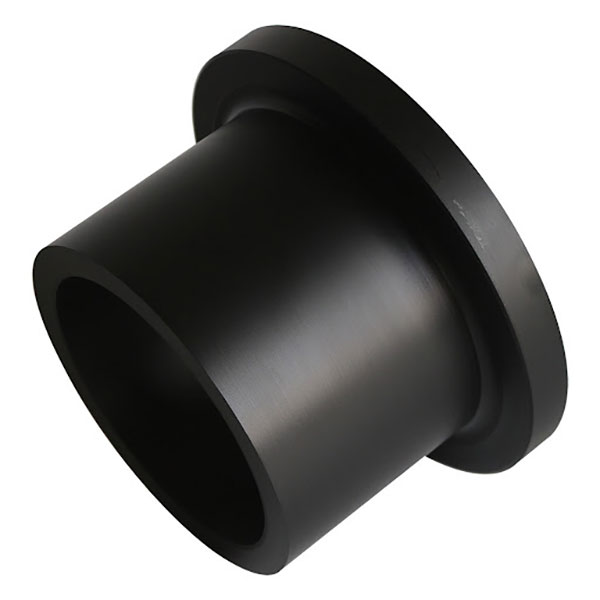

C.S Stub End
C.S Stub End
Outsize diameter: 1/2” to 48”
Pressure: PN6 to PN300
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
It is often used when the medium temperature and pressure are not high and the medium is corrosive
M.I Elbow
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter:1/8" to 6"
Pressure: PN16
Angle: 45°, 90°
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
C.S Cap
PIPE&FITTING, C.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2” to 48”
Pressure: PN6 to PN300
Weld Schedules: SCH 10, SCH 20, SCH 40, STD, XS, SCH 60, SCH 80, SCH 140, SCH 160
Material: ASTM A234 WPB, DIN 17100 ST37, JIS G3452 SS400
Surface: Hot dip galvanized, Coloring, Electroplate, etc.
C.S Spiral Pipe
PIPE&FITTING, C.S PIPE
Outsize diameter: 8" to 80"
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Carbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, Keep warm, C5M Coating, etc.
F/M Threaded Union
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
Female Threaded Cross
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
M.I Cross
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter:1/8" to 6"
Pressure: PN16
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
S.S Stub End
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Weld Schedules: 1/2" to 48"
Pressure: PN6 to PN300
Weld Schedules: SCH 10S, 40S, 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc
Threaded Hex Plug Cap
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8" to 4"
Pressure: PN6 to PN300
Material: Stainless steel
Threaded Bushing
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
S.S Saddle
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
S.S Cross
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Center distance: Concentric, Eccentric
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
F/M Threaded Union Elbow
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
