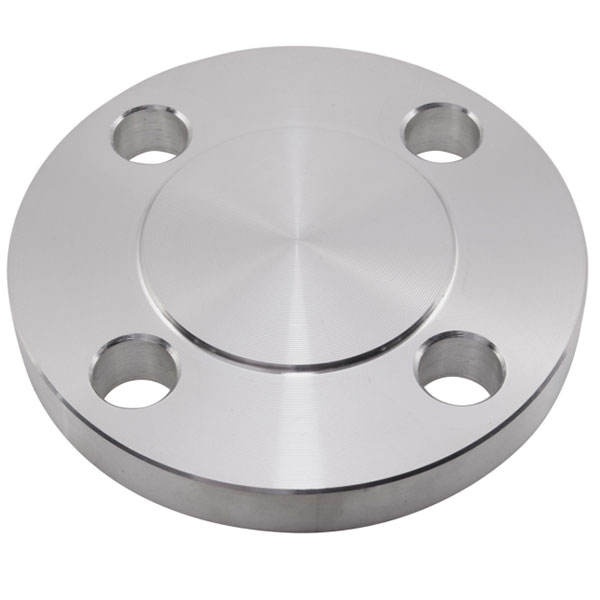

S.S B.L Flange
S.S B.L Flange
Size: 3/8” to 48”
Pressure: PN6 to PN300, Class 150 to Class 1500
Wall thickness: SCH 10S, 40S, 80S
Standard: ANSI B16.5, ANSI B16.9, ASME B16.11, ASME B16.47
EN1092-1
JIS B2220
BS4504
Material: Stainless steel
Sealing method: FF, RF,M, T, G, RJ, FM
Surface: Anti-rust oil, Coloring, etc.
Blind flanges are used to terminate the end of a piping system.
C.S ERW Pipe
PIPE&FITTING, C.S PIPE
Outsize diameter: 1/2" to 80"
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Carbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, C5M Coating, etc.
S.S Cap
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Weld Schedules: 1/2" to 48"
Pressure: PN6 to PN300
Weld Schedules: SCH 10S, 40S, 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc
F/M Threaded Union
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
C.S LSAW Pipe
PIPE&FITTING, C.S PIPE
Outsize diameter: 20" to 44"
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Corbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, C5M Coating, etc.
F/M Threaded Union Elbow
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8"” to 4"
Pressure:PN6 to PN300
Material: Stainless steel
M.I Tee
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter:1/8" to 6"
Pressure: PN16
Caliber: Equal path / Reducing / All reducing
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
S.S Tee
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Center distance: Concentric, Eccentric
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
S.S Saddle
PIPE&FITTING, S.S BUTT WELD PIPE FITTING
Outsize diameter: 1/2" to 48"
Pressure: PN6 to PN300
Weld Schedules: SCH 10S, SCH 40S, SCH 80S
Material: Stainless steel
Surface: Anti-rust oil, Coloring, etc.
Threaded Hex Plug Cap
PIPE&FITTING, S.S. THREADED CAST PIPE FITTING
Outsize diameter: 1/8" to 4"
Pressure: PN6 to PN300
Material: Stainless steel
S.S SMLS Pipe
PIPE&FITTING, S.S PIPE
Outsize diameter: 1/4" to 60"
Weld schedules: STD, SCH10S, 40S, 80S
Material: Stainless steel
Surface treatment: Pickling, Sandblasting
M.I Cross
PIPE&FITTING, MALLEABLE CAST IRON PIPE FITTING
Outsize diameter:1/8" to 6"
Pressure: PN16
Design standard: EN 10242
Connection standard: ISO 7/1
Material: Malleable Iron
C.S Spiral Pipe
PIPE&FITTING, C.S PIPE
Outsize diameter: 8" to 80"
Weld schedules: STD, SCH10, 40, 80, 120, 160, XXS
Material: Carbon steel
Surface treatment: Galvanized, Epoxy powder, 3PE, Keep warm, C5M Coating, etc.
